500-P MagnaValve®

  • 200-1200 lbs/min (100-500 kg/min) flow rate range
  • Wheels up to 50 Hp (37 kw)
  • Flows steel shot and grit

To order:
Phone: 574-256-5001 or 1-800-832-5653
Email: sales@electronics-inc.com

CPN: 999215

Description

Features

  • 200-1200 lbs/min range
  • Variable flow rates
  • No moving parts for low-maintenance operation
  • Steel shot and grit
  • ±2% Accuracy
  • Built-in flow sensor
  • Linear compensator
  • Normally closed

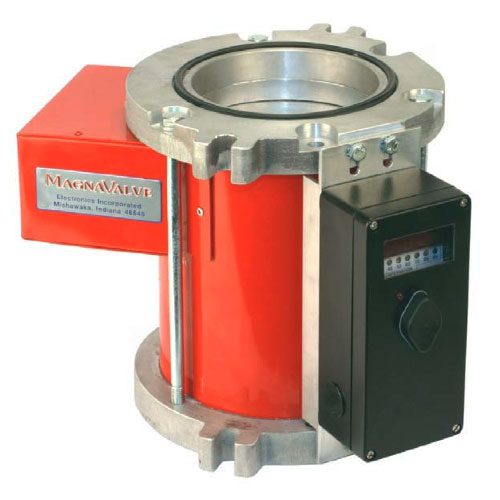

The Model 500P MagnaValve® is a normally closed magnetic valve suitable for regulation of cast steel shot and includes a built-in sensor for accurate measurement of flow rate. Used with the Model FC Controller, the MagnaValve will provide accurate and repeatable flow rates over a 200 – 1200 pounds-per-minute flow range.

The valve construction includes a permanent magnet for normally closed operation and an electromagnet for controlling shot flow rates. By regulating the voltage to the electromagnet, any desired flow rate may be achieved. When power is off, the valve will hold shot due to the permanent magnet. The pre-amp includes a 9-stage linearity compensator to achieve ±2% accuracy.

For use with stainless steel cut-wire shot contact the factory. The valve will work with some of the larger sizes of stainless steel cut-wire shot.

The 500P will NOT work with stainless steel cast shot.





Specifications

Sensor
Power ±12Vdc from FC Control
Display 4-digit
Output 0-5Vdc to FC Control
Adjustments Zero, Span, Linearity
Accuracy ±2% (of Full Scale)
Valve
Power +55Vdc @.5A from FC Control
Media Steel Shot and Grit
Flow Output 200-1200lbs/min (100-500kg/min)
Temperature Range

0-75° C (70-110°F)

Dimensions

500-P MagnaValve Dimensions - Electronics Inc

Controller
