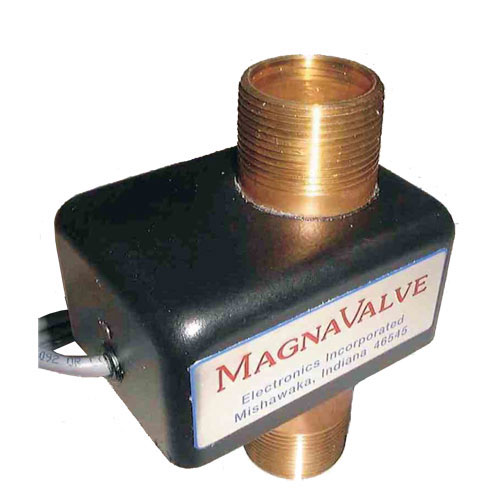

190-DC MagnaValve®

  • Up to 300 lb/min (136 kg/min) flow rate
  • 24 Vdc

To order:
Phone: 574-256-5001 or 1-800-832-5653
Email: sales@electronics-inc.com

CPN: 999337

Description

  • Supplies ferrous media to shot hoppers
  • Flow rate up to 300 lb/min (136 kg/min)*
  • Normally closed
  • No moving parts for maintenance-free operation
  • 24 Vdc
  • CE compliant

* Flow rates are based on S230 shot

The 190-DC MagnaValve® is a normally closed magnetic valve that supplies ferrous media to shot hoppers. The 190-DC MagnaValve is maintenance free — it has no moving parts so there are no parts to wear or break and it is completely sealed to prevent media dust from entering the valve. The 190-DC MagnaValve has a rare earth permanent magnet for normally closed operation and an electromagnet for controlling shot flow rates. With power applied, the magnetic field is neutralized and shot is allowed to flow through the valve. When no power is applied to the MagnaValve, the permanent magnets stop all flow. If the power is interrupted for any reason, the permanent magnets securely hold the shot, thereby virtually eliminating shot leakage.



Specifications

Input 23 -25 Vdc @ 2 A
Temp. Range 32 – 167° F (0 – 75° C)
Mode Normally closed
Media Ferrous media*

*Does not flow cast stainless steel shot

Dimensions

190 On|Off MagnaValve Dimensions - Electronics Inc



Note: The MagnaValve is designed to operate in a vertical position and must
be mounted within 5 degrees of vertical.
