24 Vdc Series MagnaValve®

  • ±5% full-scale accuracy
  • Flows steel shot and grit
  • Models 576-24, 577-24, 578-24, 579-24, 580-24, 590-24
Clear

To order:
Phone: 574-256-5001 or 1-800-832-5653
Email: sales@electronics-inc.com

CPN: N/A

Description

Model Flow Rate Range
576-24 .2 – 2 lb/min (.1 – 1 kg/min)
577-24 1 – 10 lb/min (.45 – 4.5 kg/min)
578-24 3 – 30 lb/min (1.4 – 13.5 kg/min)
579-24 10 – 100 lb/min (4.5 – 45 kg/min)
580-24 20 – 200 lb/min (9 – 90 kg/min)
590-24 30 – 300 lb/min (13.6 – 136 kg/min)



Features

  • 24 Vdc
  • ±5% full-scale accuracy (higher accuracy available upon request)
  • Built-in flow rate sensor
  • Normally closed
  • No moving parts for low-maintenance operation
  • Meets SAE AMS 2430 and 2432 specifications
  • CE compliant
  • Suitable for shot peening and blast cleaning applications

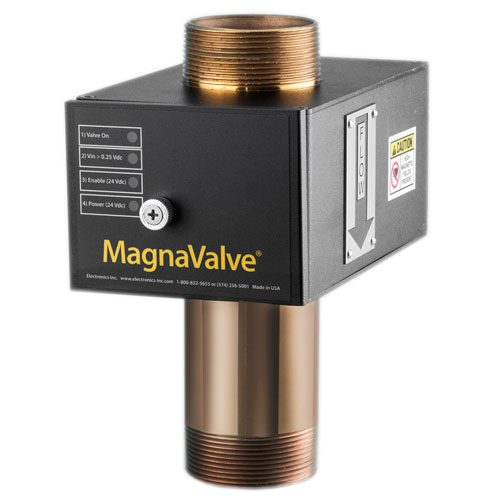

The MagnaValve® is a normally closed magnetic valve that regulates the flow of steel shot and cut wire media in air blast machines. The MagnaValve’s built-in sensor measures flow rate and, together with the FC-24 Controller (sold separately), provides accurate and repeatable flow rates. The MagnaValve can be factory calibrated for various media types and sizes.

The MagnaValve’s construction includes a strong and stable rare earth permanent magnet for normally closed operation and an electromagnet for controlling shot flow rates. When no power is applied to the MagnaValve, the permanent magnet stops all flow. With power applied, the magnetic field is neutralized and shot is allowed to flow through the valve. If the power is interrupted for any reason, the permanent magnet in the valve securely holds the shot. The valve is factory calibrated and results are supplied upon request.

The MagnaValve provides reliable, repetitive, and consistent media flow rates for shot peening and blast cleaning applications. The MagnaValve makes it easy to document flow rate and establish or repeat a good set-up. The valve meets the requirements of SAE AMS 2430, AMS 2432 and other aerospace and commercial specifications.

Specifications

Power   24 Vdc @ 2A (50 VA)
Media  Ferrous Media
Maximum Pressure 100 PSI
Mode Normally Closed
Temperature Range  40º – 110º F (5º – 43º C)
Servo Command Input  0 – 10 Vdc
Flow Enable Input  24 Vdc
Flow Sensor Output  0 – 10 Vdc
Display LEDs   Valve On
  Command Input
   Flow Enable
  24 V Power

Dimensions

24Vdc Magnavalve dimensions - Electronics Inc.

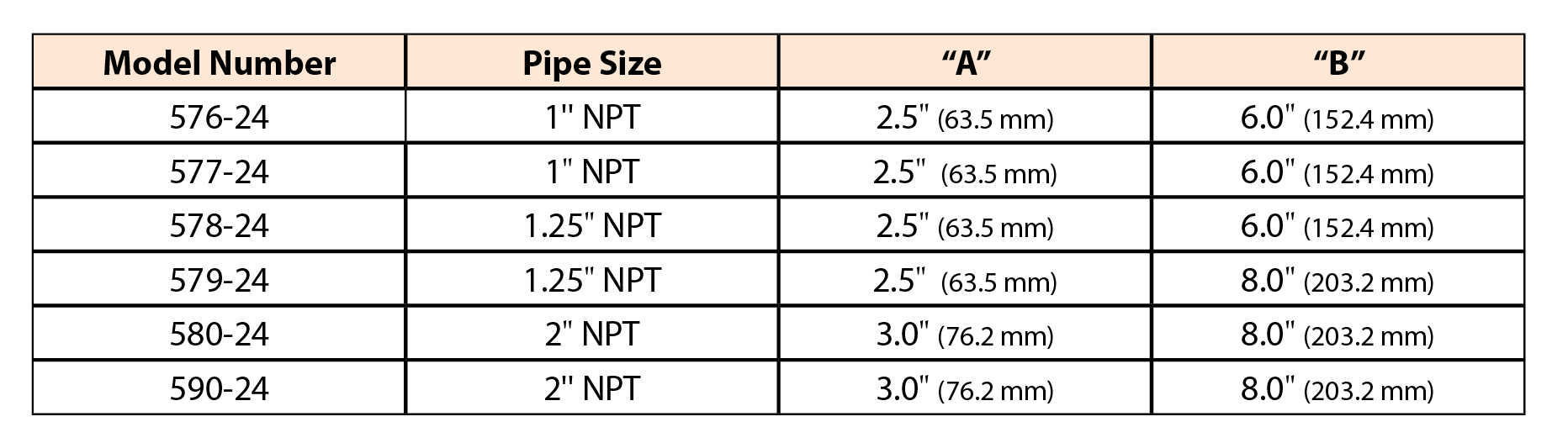

Model Pipe Size “A” “B”

576-24

1″ NPT 2.5″ (63.5 mm) 6.0″ (152.4 mm)
577-24 1″ NPT 2.5″ (63.5 mm) 6.0″ (152.4 mm)
578-24 1.25″ NPT 2.5″ (63.5 mm) 6.0″ (152.4 mm)
579-24 1.25″ NPT 2.5″ (63.5 mm) 8.0″ (203.2 mm)
580-24 2″ NPT 3.0″ (76.2 mm) 8.0″ (203.2 mm)
590-24 2″ NPT 3.0″ (76.2 mm) 8.0″ (203.2 mm)

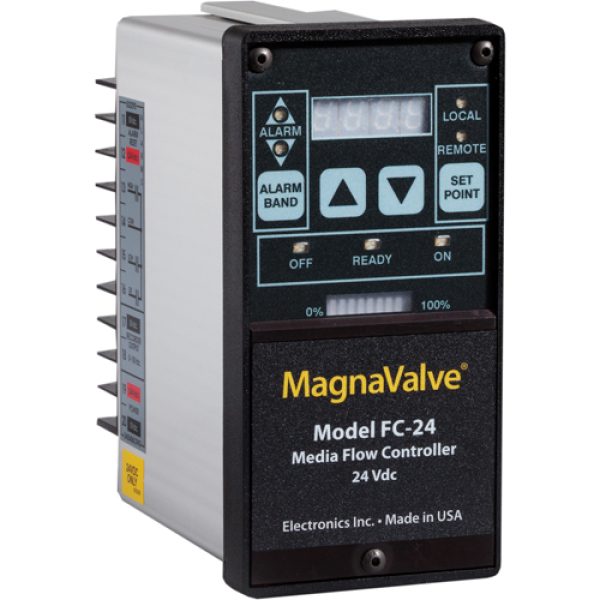

Controller

sold separately
