VLP-24 MagnaValve®

  • 200-1000 lbs/min (91-453 kg/min) flow rate range
  • Wheels up to 25 Hp (19 kw)
  • Flows steel shot and grit

To order:
Phone: 574-256-5001 or 1-800-832-5653
Email: sales@electronics-inc.com

CPN: 999314

Description

Features

  • Flow rate range of 200 – 1000 lb/min (91 – 453 kg/min)*
  • Media flow control for wheels up to 25 Hp (19 kw)
  • Regulates flow of steel media and grit
  • Normally closed
  • No moving parts for low-maintenance operation
  • Provides controllable shot flow rates
  • Easy retrofit installation
  • 24 Vdc Power
  • CE compliant

* Flow rate depends on media type

The VLP-24 MagnaValve® is a normally closed magnetic valve that regulates the flow of steel shot and grit in wheel blast machines. The VLP-24 is maintenance free — it has no moving parts so there are no parts to wear or break and it is completely sealed to prevent media dust from entering the valve.

How It Works
The VLP-24 has rare earth permanent magnets for normally closed operation and an electromagnet for controlling shot flow rates. With power applied, the magnetic field is neutralized and shot is allowed to flow through the valve. When no power is applied to the MagnaValve, the permanent magnets stop all flow. If the power is interrupted for any reason, the permanent magnets securely hold the shot, thereby virtually eliminating shot leakage.

Closed or Open Loop Operation
For an “automatic” closed-loop operation, an Electronics Inc. (EI) AC-24 Controller will detect the current load on the wheel motor and regulate the flow of media to the VLP-24. This closed-loop system will provide accurate and repeatable flow rates over a 200 – 1000 lb/min (91 – 453 kg/min) range. The EI POT-24 Controller (sold separately) provides “manual” open loop control.

A clear and comprehensive installation manual simplifies installation of the VLP-24 MagnaValve. The valve is factory tested and results are supplied upon request. In addition, the products are supported by the EI application engineering staff.

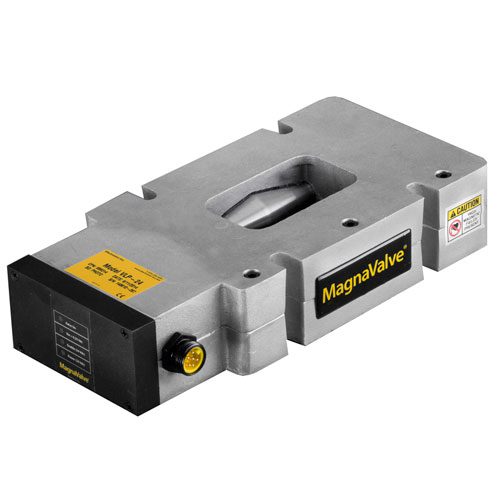

VLP-24 MagnaValve diagram - Electronics Inc

Specifications

Power +24 Vdc @ 2A (50 VA) ±24 Vdc
Media Steel Shot and Grit
Mode Normally Closed
Flow Output 200 – 1000 lb/min (91- 453 kg/min)
Temperature Range 32˚ – 167˚ F (0˚- 75˚ C)
Weight 15 lbs
Servo Command Input 0 – 10 Vdc

Dimensions

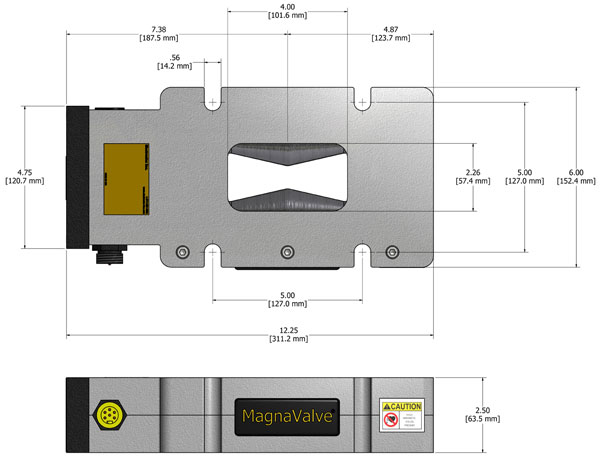

VLP-24 MagnaValve Dimensions - Electronics Inc

Controllers

sold separately
