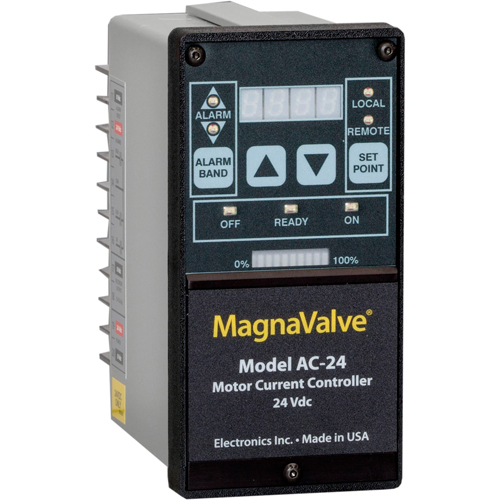

AC-24 Controller

  • Monitors motor current
  • 24 Vdc
  • Provides closed-loop system

To order:
Phone: 574-256-5001 or 1-800-832-5653
Email: sales@electronics-inc.com

CPN: 999330

Description

  • Monitors motor current
  • Four-digit display
  • 10 LED bar graph
  • High-low alarm contacts
  • Accepts remote command setpoint
  • Provides analog recorder output
  • Easy panel mounting (1/2 DIN)

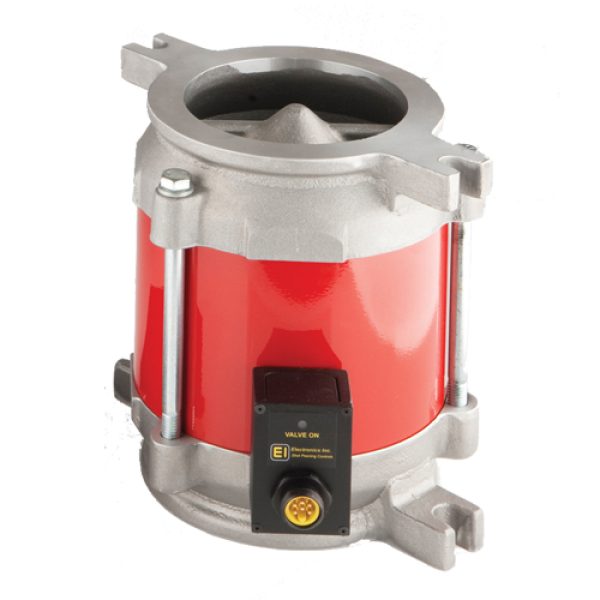

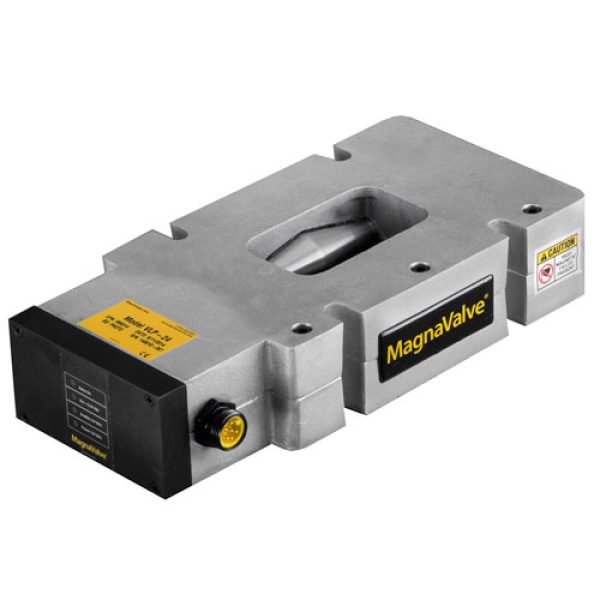

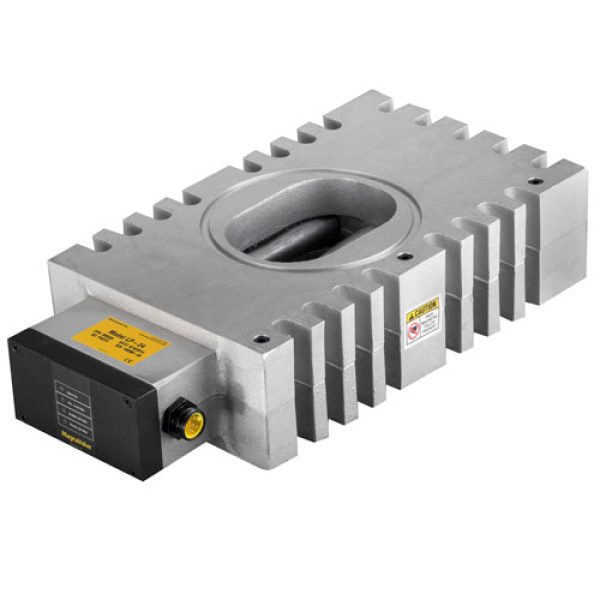

  • Provides automatic operation (closed-loop system) for the LP-24, VLP-24 and WM 3000-24 MagnaValve
  • 24 Vdc
  • CE compliant

The AC-24 Controller provides automatic operation ( a closed-loop system) for the MagnaValve. The feedback from the controller allows the MagnaValve to regulate steel shot in shot peening and blast cleaning applications where accurate and repeatable flow rates are desired. The controller may operate as a stand-alone control or work with a customer’s programmable controller via standard analog 0-10 Vdc interface.

A clear and comprehensive installation manual simplifies installation for the AC-24 Controller and the product is supported by the Electronics Inc. application engineering staff.

Ac-24 Controller system diagram



Specifications

Power 24 Vdc @ 0.5 A
Motor Current Input 0 – 5 AAc
Servo Output Signal 0 – 10 Vdc to MagnaValve
Flow Enable Output to MagnaValve 24 Vdc @ 10 mA
Flow Enable Input from PLC 24 Vdc
Remote Current Request 0 – 100%
Weight 1.3 lb (.59 kg)
Display Range 0 – 1999
Alarm Band 0 – 50% of full scale
Alarm Delay 0 – 10 seconds
Enable Delay 0 – 10 seconds
Temperature Range 32 – 122 ° F (0 – 50 ° C)

Dimensions

AC-24_dimensions
