AC Controller

Home » Products » MagnaValve Controllers » AC Controller

AC Controller - Electronics Inc

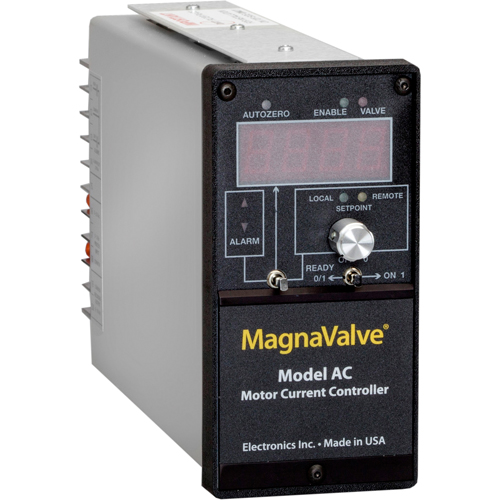

AC Controller

CPN: 999201

  • Monitors motor current
  • 120 Vac
  • Provides closed-loop system

To order:
Phone: 574-256-5001 or 1-800-832-5653
Email: sales@electronics-inc.com

Category: MagnaValve Controllers.
  • Description
  • Specifications
  • Dimensions
  • Downloads
  • 120 Vac
  • Digital display
  • High-low alarm contacts
  • Accepts remote command setpoint
  • Provides analog recorder output
  • Easy panel mounting
  • Provides automatic operation (a closed loop system)
    for the VLP-1000, LP-2000, and 100 MagnaValve®

The AC Controller provides automatic operation (a closed-loop system) for the MagnaValve. The feedback from the controller allows the MagnaValve to regulate steel shot in shot peening and blast cleaning applications where accurate and repeatable flow rates are desired. The controller may operate as a stand-alone control or work with a customer’s programmable controller via standard analog 0-10 Vdc interface. Alarm contacts will notify of a high or low motor current outside of an adjustable bandwidth.

A clear and comprehensive installation manual simplifies installation for the AC Controller and the product is supported by the Electronics Inc. application engineering staff.

AC_Diagram

Specifications

Power 115 Vac, 50/60 Hertz
50 VA
Inputs 0 – 5 Amps (from wheel motor)
Remote Command Setpoint (0 -10Vdc)
Enable (115Vac)
Alarm Reset (115Vac)
Outputs Valve Power 50 Vdc PVM
at 8-25 Hertz
Recorder Analog Output (0 -10Vdc)
Alarm Relay Contacts (115Vac @ 1Amp) Max.
Excitation Output Voltage ±12 Vdc (100 mA)
Reference Output Voltage +10 Vdc (10 mA)
Weight 5 lb / 2.27 Kg
Display Range 0 – 1999
Decimal Points 1999, 199.9, 19.9
Alarm Band 0 – 50% of full scale
Alarm Delay 0 – 10 seconds
Reset Delay 0 – 10 seconds
Auto-Zero ±20% of full scale
Temperature Range 32 – 122 ° F (0 – 50 ° C)

Dimensions

AC Controller Electronics Inc

Downloads

Documentation

  • Data Sheet
  • Instruction Manual

Case Studies

  • Benefits of a closed-loop system

Related products

View Details

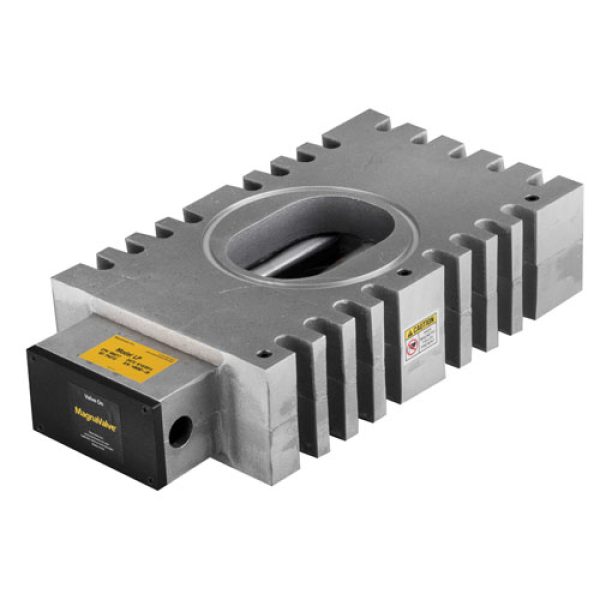

LP2000 MagnaValve®

MagnaValves, MagnaValves for Wheel Blast Machines
  • 400-2000 lb/min (181-907 kg/min) flow rate range
  • Wheels up to 50 Hp (37 kw)
  • Flows steel shot and grit
View Details

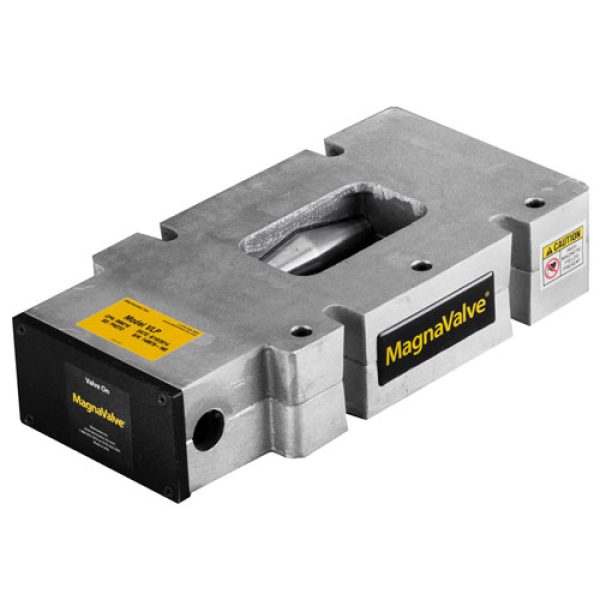

VLP1000 MagnaValve®

MagnaValves, MagnaValves for Wheel Blast Machines
  • 200-1000 lbs/min (91-453 kg/min) flow rate range
  • Wheels up to 25 Hp (19 kw)
  • Flows steel shot and grit
View Details

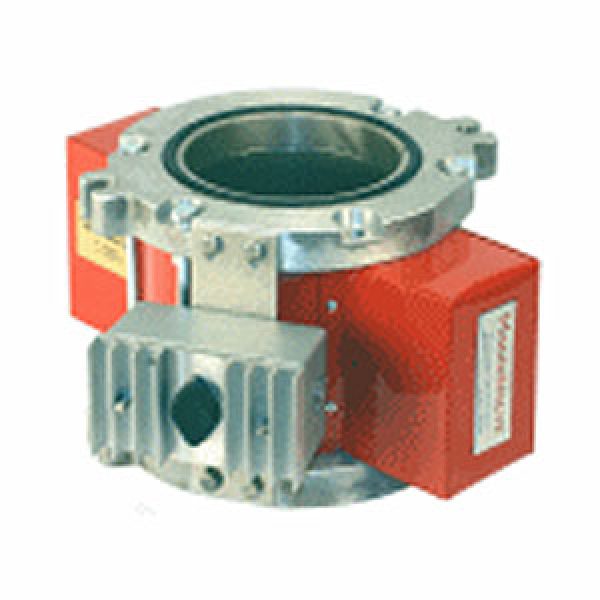

100 MagnaValve®

MagnaValves, MagnaValves for Wheel Blast Machines
  • 400-2400 lb/min (181-1089 kg/min) flow rate range
  • Flows steel shot and grit
