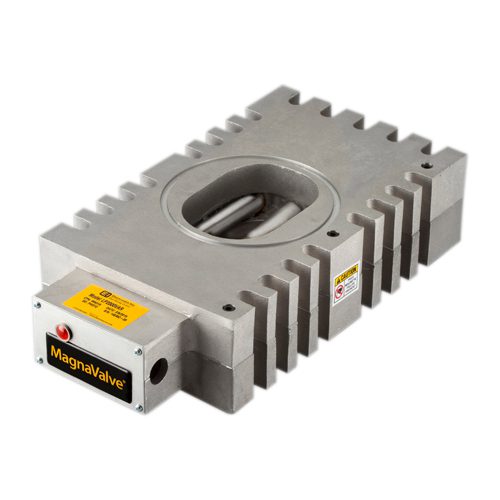

LP2000VAR MagnaValve®

  • 400-2000 lb/min (181 – 907 kg/min)* flow rate range
  • Wheels up to 50 Hp (37 kw)
  • Flows steel shot and grit

To order:
Phone: 574-256-5001 or 1-800-832-5653
Email: sales@electronics-inc.com

CPN: 999316

Description

Features

  • Flow rate range of 400 – 2000 lb/min (181 – 907 kg/min)*
  • For wheels up to 50 Hp (37 kw)
  • Variable flow rate using the Variac (included)
  • Normally closed
  • No moving parts for low-maintenance operation
  • Regulates flow of steel shot and grit
  • Easy retrofit installation

* Flow rates based on S230 shot

The LP2000/VAR MagnaValve® is a normally closed magnetic valve that regulates the flow of steel shot and grit in wheel blast machines. The LP2000/VAR has no moving parts so there are no parts to wear or break and it is completely sealed to prevent media dust from entering the valve.

The LP2000/VAR has rare earth permanent magnets for normally closed operation and an electromagnet for controlling shot flow rates. With power applied, the magnetic field is neutralized and shot is allowed to flow through the valve. When no power is applied to the MagnaValve, the permanent magnets stop all flow. If the power is interrupted for any reason, the permanent magnets securely hold the shot, thereby virtually eliminating shot leakage.

The LP2000/VAR MagnaValve is controlled with a Variac. A Variac is a variable AC transformer that provides 0-120 Vac output voltage to the MagnaValve. With zero volts applied to the MagnaValve, the permanent magnets hold the shot. Application of voltage will cancel the permanent magnets’ holding force and allow the shot to flow. Higher voltages will provide higer shot flow rates. The Variac is included with the LP2000/VAR MagnaValve.

The LP2000VAR MagnaValve provides a high degree of media control but it will not recognize fault conditions such as low flow rates. See MagnaValve series which work with the AC amperage controller. The AC Controller has a large digital display for motor amps and high/low alarms.

A clear and comprehensive instruction manual simplifies installation of the LP2000/VAR. The MagnaValve is factory tested and results are supplied upon request. In addition, the products are supported by the Electronics Inc. application engineering staff.

Smaller sizes of stainless steel cut wire shot will not work with this MagnaValve model. For those
applications, see model VLP1000/VAR for 1000 lb/min capacity.



LP2000VAR MagnaValve Diagram - Electronics Inc





Specifications

Power 0 – 120 Vac @ 0.225A
Media Steel Shot and Grit
Flow Output 400 – 2000 lb/min (181 – 907 kg/min)*
Weight 32 lb/14 kg
Temperature Range 32˚ – 212˚ F (0˚ – 100˚ C)
Indicator Red Neon Lamp
Material Cast Aluminum

* Flow rates are based on S230 shot

Dimensions

LP2000VAR MagnaValve Dimensions - Electronics Inc

Controller

sold separately
