MC Controller

Home » Products » MagnaValve Controllers » MC Controller

MC Controller - Electronics Inc

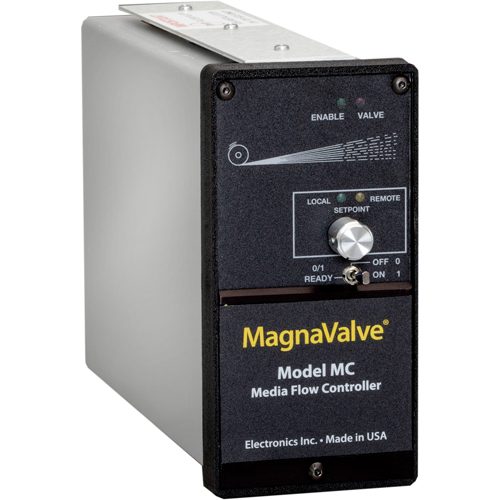

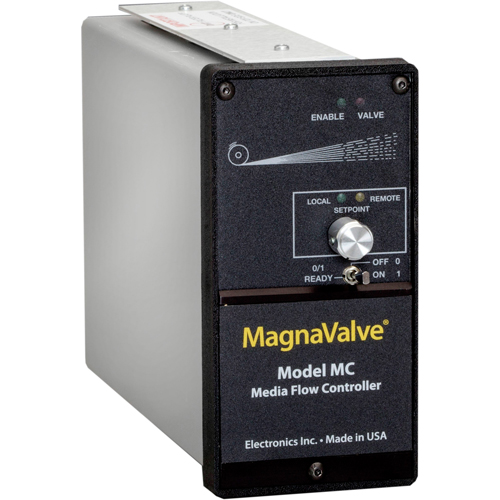

MC Controller

CPN: 999235

  • MagnaValve control
  • 120 Vac
  • Provides open-loop system

To order:
Phone: 574-256-5001 or 1-800-832-5653
Email: sales@electronics-inc.com

Category: MagnaValve Controllers.
  • Description
  • Specifications
  • Dimensions
  • Downloads
  • 120 Vac 50/60 Hz
  • 10-turn potentiometer setpoint
  • Accepts remote command setpoint setpoint or 0 -10 Vdc from PLC
  • Easy panel mounting
  • Provides a power signal to the VLP-1000, LP-2000, and 100 MagnaValve®

The MC Controller provides the power signal for the manual MagnaValve series (VLP-1000, LP-2000, and 100 MagnaValve). It provides a 0-100% range of output to the MagnaValve using pulse width modulation (PWM). The controller may operate alone or in conjuction with a remote 0 – 10 Vdc setpoint command. Both wheel- and air-type MagnaValves can be used with this controller.

A clear and comprehensive installation manual simplifies installation for the MC Controller and the
product is supported by the Electronics Inc. application engineering staff.

MC Controller system diagram



Specifications

Power 120 Vac, 50/60 Hertz
50 VA
Inputs Remote Command Setpoint (0 -10Vdc)
Enable (98 – 120 Vac)
Ouputs Valve Power 50 Vdc PWM at 8 Hertz
Reference Voltage 10 Vdc
Weight 4 lb/1.8 kg

Dimensions

MC

Downloads

Documentation

  • Data Sheet
  • Instruction Manual

Related products

View Details

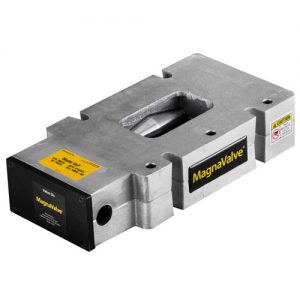

VLP1000 MagnaValve®

MagnaValves, MagnaValves for Wheel Blast Machines
  • 200-1000 lbs/min (91-453 kg/min) flow rate range
  • Wheels up to 25 Hp (19 kw)
  • Flows steel shot and grit
View Details

100 MagnaValve®

MagnaValves, MagnaValves for Wheel Blast Machines
  • 400-2400 lb/min (181-1089 kg/min) flow rate range
  • Flows steel shot and grit

View Details

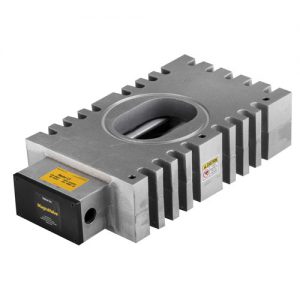

LP2000 MagnaValve®
