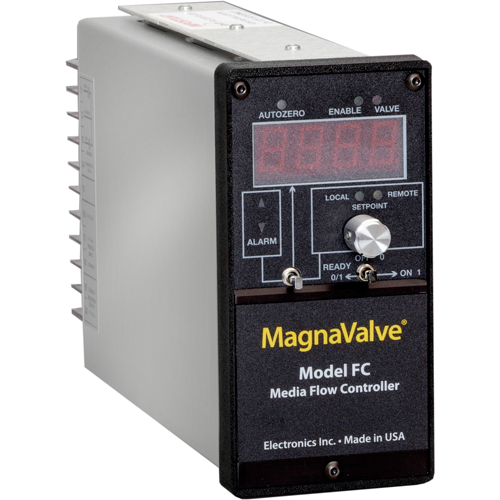

FC Controller

  • Monitors media flow
  • 120 Vac
  • Provides closed-loop system

To order:
Phone: 574-256-5001 or 1-800-832-5653
Email: sales@electronics-inc.com

CPN: 999234

Description

  • 120 Vac
  • Monitors flow rate in lb/min and kg/min
  • Digital display
  • High-low alarm contacts
  • Accepts remote command setpoint
  • Provides analog recorder output
  • Easy panel mounting

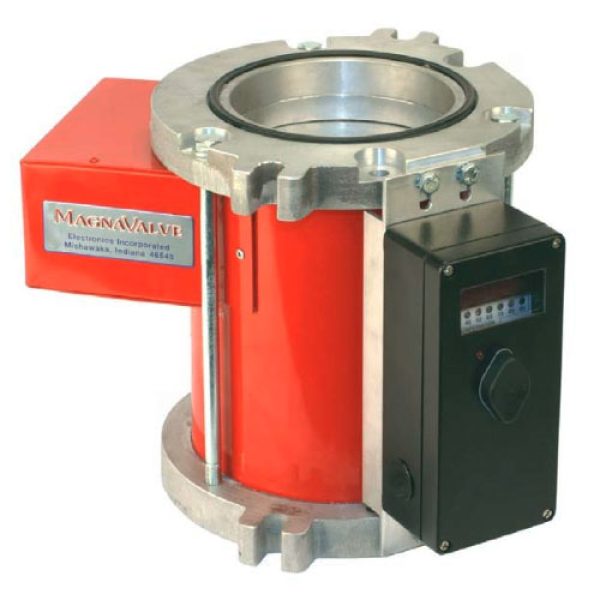

The FC Controller provides a closed-loop system for the 120 Vac Series  (578, 579, 580 590) MagnaValve and the 500-P MagnaValve. The MagnaValve® and controller provide accurate regulation of steel shot in shot peening and blast cleaning applications where accurate and repeatable flow rates are desired. The controller may operate as a stand-alone control or work with a customer’s programmable controller via standard analog 0-10 Vdc interface.

A clear and comprehensive installation manual simplifies installation for the FC Controller and the product is supported by the Electronics Inc. application engineering staff.

Closed Loop System with the FC Controller and MagnaValve

FC Controller Diagram - Electronics Inc

Specifications

Power 115 Vac, 50/60 Hertz
50 VA
Flow Sensor Input 0 – 5 Vdc
Valve Power 50 Vdc PVM
at 8-25 Hertz
Excitation Voltage ±12 Vdc @ 100 mA
Reference Voltage +10 Vdc @ 10 mA
Weight 5 lbs
Display Range 0 – 1999 *
Decimal Points 1000, 100.0, 10.0
Alarm Band 0 – 50% of full scale
Alarm Range 0 – 10 seconds
Enable Delay 0 – 10 seconds
Temperature Range 32 – 122 ° F (0 – 50 ° C)

*Expanded range available upon request

Dimensions

FC-24 Controller Electronics Inc
