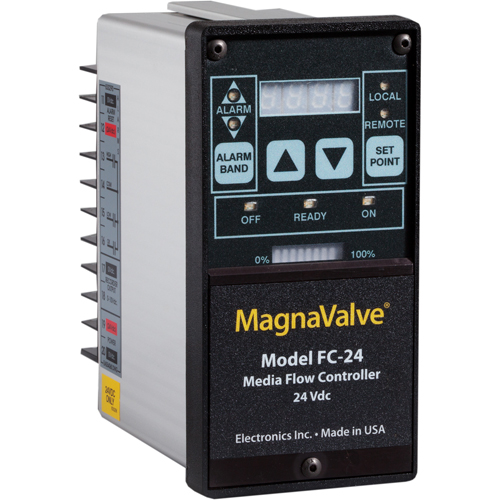

FC-24 Controller

  • Monitors media flow
  • 24 Vdc
  • Provides closed-loop system

To order:
Phone: 574-256-5001 or 1-800-832-5653
Email: sales@electronics-inc.com

CPN: 999331

Description

  • 24 Vdc
  • Monitors flow rate in lb/min and kg/min
  • Digital display
  • High-low alarm contacts
  • Accepts remote command setpoint
  • Provides analog recorder output
  • Easy panel mounting
  • CE Compliant

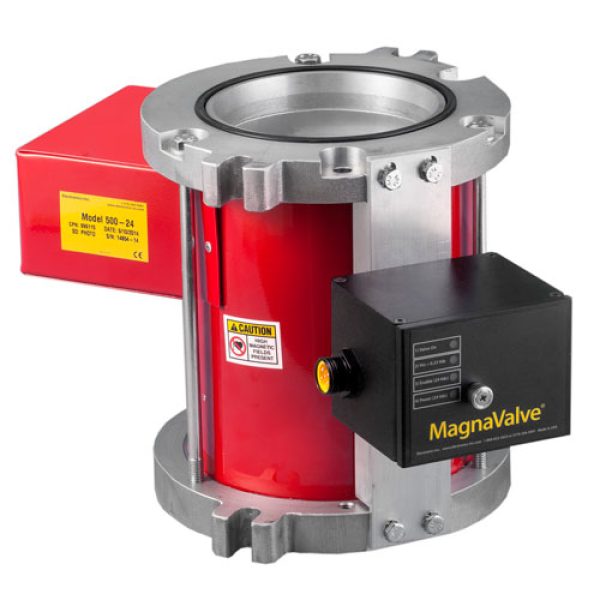

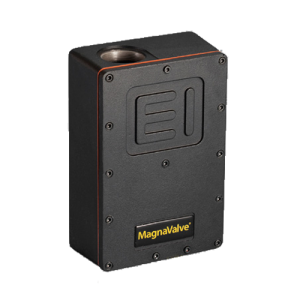

The FC-24 Controller provides a closed-loop system for the 24 Vdc Series MagnaValve (576-24, 577-24, 578-24, 579-24, 580-24, 590-24),  the 500-24 MagnaValve and the 700-24 MagnaValve.  The MagnaValve® and controller provide accurate regulation of steel shot in shot peening and blast cleaning applications where accurate and repeatable flow rates are desired. The controller may operate as a stand-alone control or work with a customer’s programmable controller via standard analog 0-10Vdc interface. Flow rate signal from the MagnaValve is used as the input signal.

Closed Loop System with the FC-24 Controller and MagnaValve

FC-24 Diagram - Electronics Inc

Specifications

Power 24 Vdc @ 0.5 A
Flow Sensor Input 0 – 10 Vdc into 100 K
Servo Output Signal 0 – 10 Vdc
Flow Enable Output 24 Vdc @ 10 mA
Weight 1.3 lb (.59 kg)
Display Range 0 – 1999
Decimal Points 1000, 100.0, 10.0
Alarm Band 0 – 50% of full scale
Alarm Range 0 – 10 seconds
Enable Delay 0 – 10 seconds
Temperature Range 32 – 122 ° F (0 – 50 ° C)
