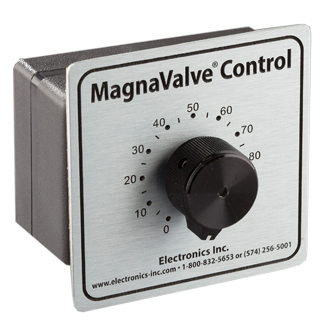

POT-24 Controller

  • MagnaValve control
  • 24 Vdc
  • Provides open-loop system

To order:
Phone: 574-256-5001 or 1-800-832-5653
Email: sales@electronics-inc.com

CPN: 999333

Description

  • 0 – 10 Vdc signal output to MagnaValve®
  • Output limit control prevents motor overload
  • Mounts on panel door for easy access
  • Front and back LED indicators
  • Provides manual operation (an open loop system) for the LP-24, VLP-24 and WM 3000-24 MagnaValve
  • Operates from 24 Vdc
  • CE compliant

The Pot-24 Controller provides manual operation (an open loop system) to the MagnaValve® with a 0 – 100% control signal range. The controller can also be used as a safeguard by setting the output limit for 20% – 100%, thus  limiting the signal to the MagnaValve, restricting the shot’s maximum flow rate and preventing excessive current to the wheel.

POT-24 system diagram

Specifications

Power 24 Vdc @ 0.1 A
Valve Control Signal Output 0 – 10 Vdc
Weight 1lb (.453 kg)
Temperature Range 32 – 122 ° F (0 – 50 ° C)
Display LEDs Power, Enable
Output Limit Control 20 – 100%

Dimensions

POT-24 Controller dimensions - Electronics Inc
