178-DC MagnaValve®

Home » Products » On | Off Hopper Fill MagnaValves » 178-DC MagnaValve®

178-DC On Off MagnaValve - Electronics Inc

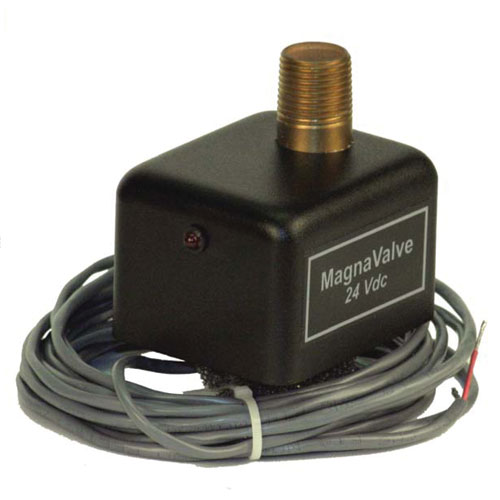

178-DC MagnaValve®

CPN: 999318

  • 30 lb/min (15 kg/min) flow rate
  • 24 Vdc

To order:
Phone: 574-256-5001 or 1-800-832-5653
Email: sales@electronics-inc.com

Category: On | Off Hopper Fill MagnaValves.
  • Description
  • Specifications
  • Dimensions
  • Downloads
  • Normally closed
  • 30 lb/min (15 kg/min)
  • No moving parts
  • No air cylinders
  • Steel shot/grit
  • Fail Safe permanent magnet construction
  • 24 Vdc
  • CE compliant

The Model 178-DC MagnaValve is a normally closed magnetic valve typically used to replenish media hoppers with cast steel shot or cut wire shot.

The valve construction includes a permanent magnet for normally closed operation and an electromagnet to activate shot flow. By applying power to the electromagnet, a full flow condition may be achieved. When power is off, the valve will hold shot due to the permanent magnet.

Specifications

Input 23-25 Vdc @ 0.2A
Output 30 lb/min (15 kg/min)
Media Steel shot
Mode Normally closed
Temp. Range 32 – 167° F (0 – 75° C)
LED Red for flow

Dimensions

178-DC On|Off MagnaValve Dimensions - Electronics Inc



Note: The MagnaValve is designed to operate in a vertical position and must
be mounted within 5 degrees of vertical.
