MagnaValve Selector Guide for Wheel Blast Machines

24 Vdc Models
120 Vac Models
Hopper Refill MagnaValves

24 Vdc MagnaValves for Wheel Blast Machines

Amperage Control
  Model Number lbs/min capacity* kg/min capacity* Max HP Controls
VLP-24 MagnaValve VLP-24 1000 500 25
Automatic amperage closed loop control
AC-24 closed loop control AC-24
Manual operator control
Pot-24 manual operator control Pot-24

LP-24 MagnaValve LP-24 2000 1000 50
Flow Rate Control
 Model 590-24 Valve (image for reference only) 590-24 300 150 15
Automatic flow rate closed loop control
FC-24 automatic flow rate control FC-24

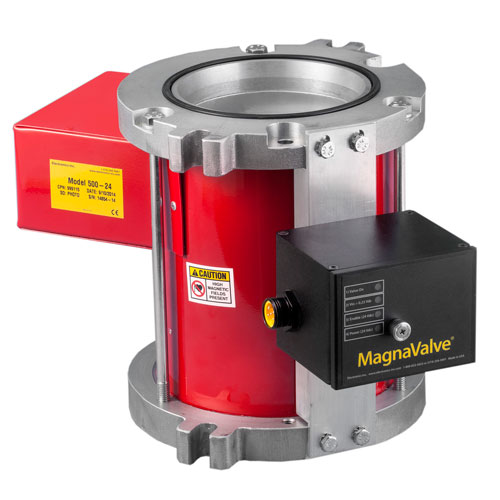

Model 500-24 Valve (photo is of 500-P) 500-24 1200 600 25
Contact us for pricing

* Flow rates shown are approximations and are listed for guidance only

120 Vac MagnaValves for Wheel Blast Machines

Amperage Control
  Model Number lbs/min capacity* kg/min capacity* Max HP Controls
VLP-1000 MagnaValve VLP-1000 1000 500 25
Automatic amperage closed loop control
wheel blast automatic control AC
Manual operator control
wheel blast manual operator control MC

VL-2000 MagnaValve LP-2000 2000 1000 50

 Model 100 Valve  100  2400  1200
Flow Rate Control
 Model 250P Valve 250-P 700 350  25
Automatic flow rate closed loop control
FC automatic flow rate control FC

 Model 500P Valve (500-24 similar)  500-P  1200  600  50
Manual Control
VLP-10000VAR manual control VLP-1000VAR 1000 500 25
 Manual operator control
0-120 VAC Variac 0-120 Vac
Variac

LP-2000VAR manual control LP-2000VAR 2000 1000 50
Contact us for pricing

* Flow rates shown are approximations and are listed for guidance only



Hopper Refill MagnaValve for Wheel Blast Machines

The Hopper Refill MagnaValve eliminates the need for an air cylinder and lowers maintenance costs.

Hopper Refill MagnaValveThe Hopper Refill MagnaValves are normally-closed magnetic valves typically used to replenish shot hoppers with cast steel shot or cut wire shot. The valve construction includes a permanent magnet for normally-closed operation and an electromagnet to activate shot flow. By applying power to the electromagnet, a full-flow condition may be achieved. When power is off, the valve will hold shot due to the permanent magnet.

Hopper Refill Diagram

The Hopper Refill MagnaValve eliminates the need for a high maintenance air cylinder and dipper valve.

24 Vdc power
Model Number lbs/min capacity* kg/min capacity*
178-DC 50 25
179-DC 100 50
180-DC 200 100
190-DC 300 150
Contact us for pricing
120 Vac power
Model Number lbs/min capacity* kg/min capacity*
178-AC 50 25
179-AC 100 50
180-AC 200 100
190-AC 300 150
Contact us for pricing

* Flow rates shown are approximations and are listed for guidance only
